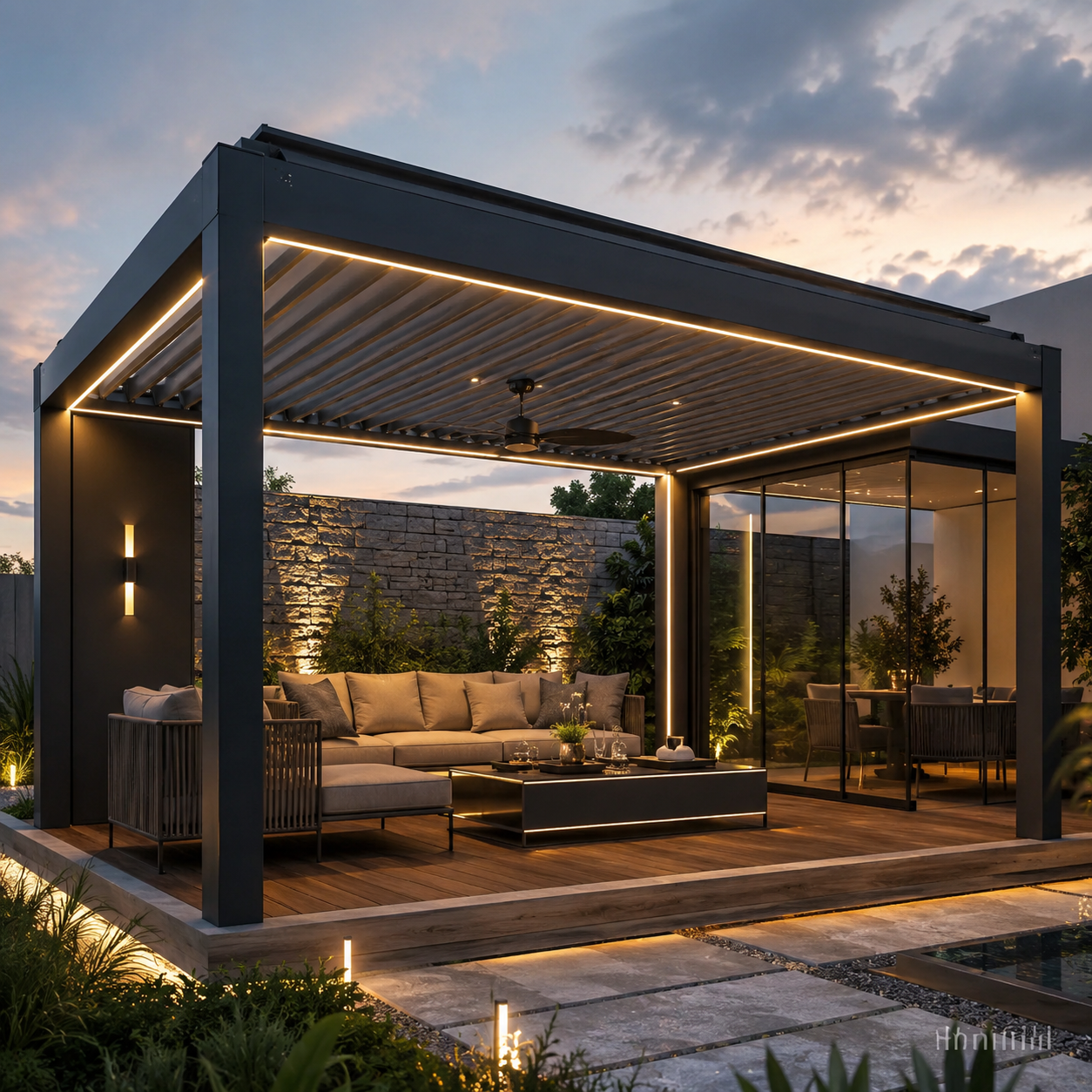

The 220 Type Aluminum Louvered Pergola is a heavy-duty outdoor shading system designed for larger residential and commercial spaces. Its adjustable louvered roof opens up to 90°, allowing flexible control of sunlight, shade and ventilation, while the double-layer blade structure and concealed drainage system help protect the covered area from rain. The pergola combines a strong aluminum frame with a modern appearance and can be equipped with windproof roller blinds, glass panels, grilles, heaters, fan lights and intelligent control systems to create a multifunctional outdoor living space. It is suitable for villas, gardens, swimming pools, terraces, outdoor dining areas and other leisure applications.

When the Pergola Becomes Part of the Architecture

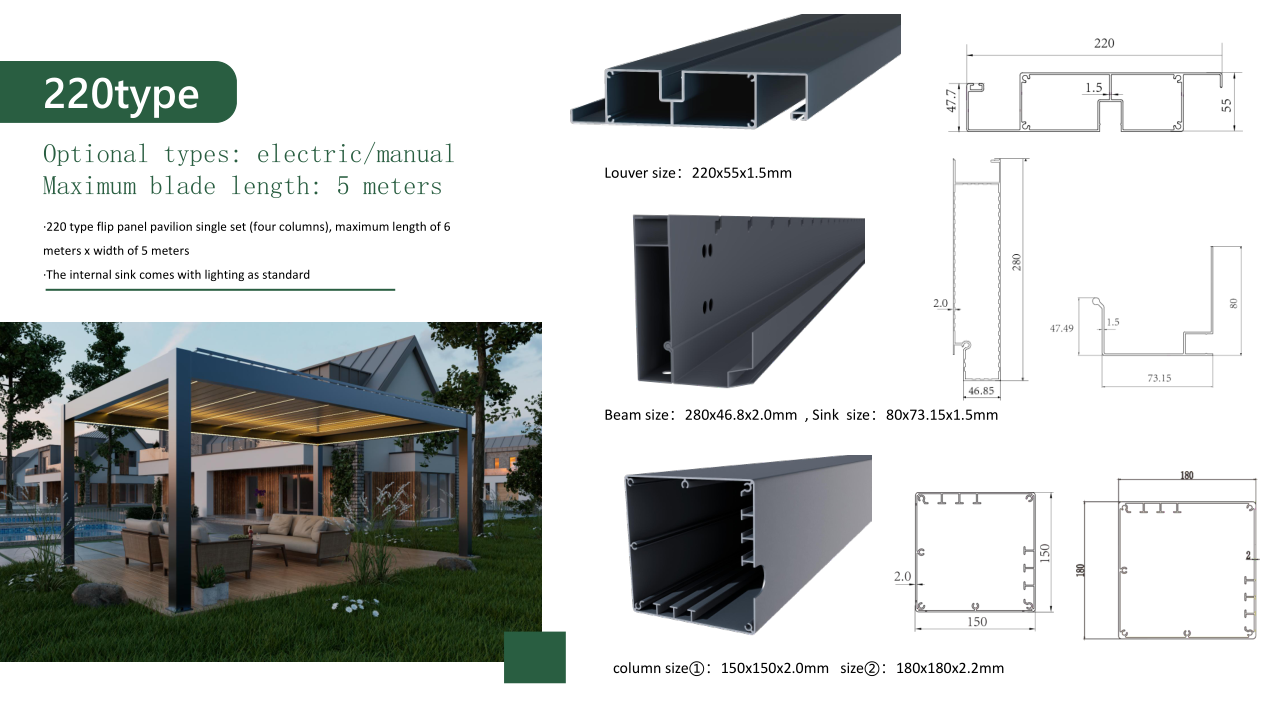

For larger residential, hospitality and commercial spaces, the pergola is no longer a small accessory placed in the garden.Its proportions begin to influence the architecture itself.Model 220 uses the largest louver profile among these five systems, with a 220 × 55 × 1.5 mm blade and a larger supporting beam structure designed for wider individual modules.

It is therefore better positioned for projects where scale, structural presence and a more substantial roof system are priorities.

More Space Without Making the Structure Feel Temporary

Large outdoor areas often lose their sense of proportion when covered by a structure that looks too light for the building around it.

The 220 system uses larger structural profiles, including a 280 × 46.8 × 2.0 mm beam and column options up to 180 × 180 × 2.2 mm.The result is not simply “a stronger pergola.” The more important point is that the structural proportions are more appropriate for larger architectural spaces.

The standard Model 220 specification allows a maximum blade length of 5 m and a single-set maximum size of approximately 6 × 5 m.

Comfort Should Feel Natural

For larger premium outdoor spaces, comfort often comes from details people barely notice — enough shade at the right time, a structure that feels proportional to the building and lighting that allows the terrace to remain inviting after sunset.

Technology should support the space rather than dominate it.

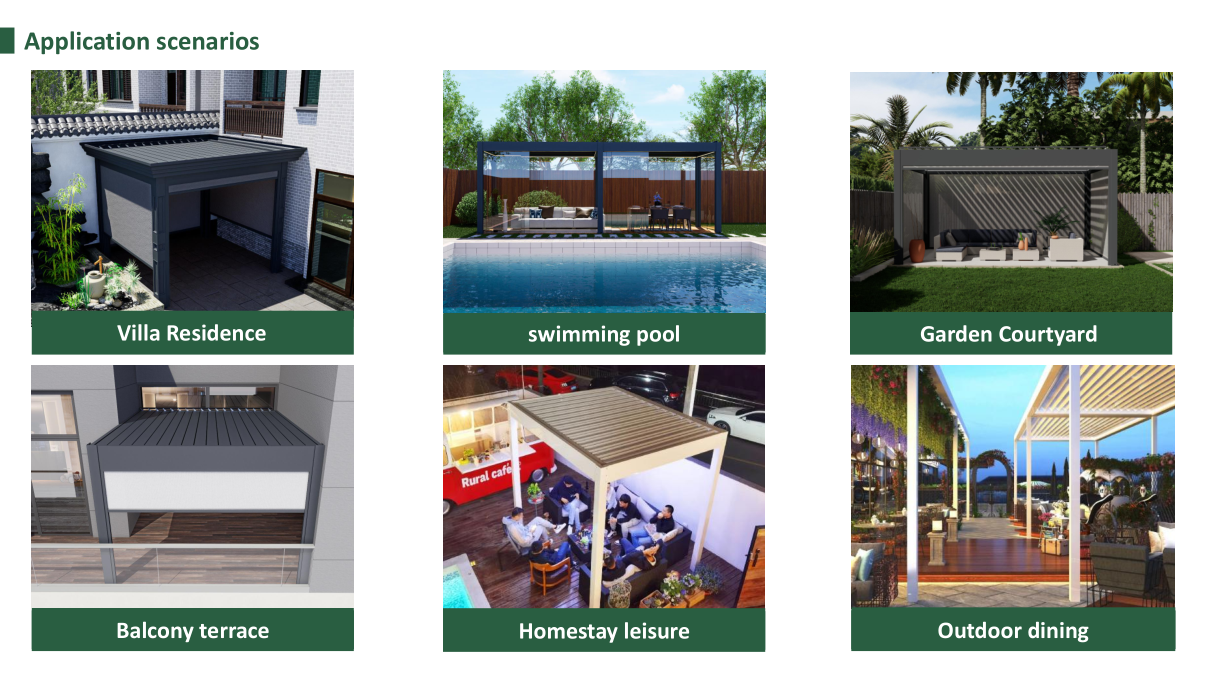

Suitable Projects

Large residential patios, villas, hotel terraces, resort environments, restaurants and other projects where a larger single-module roof system is preferred.
